KILLER DOWEL PIN REPAIR KIT ('89-'93, 12V and '98.5-'02, 24V - 5.9L)

We are all familiar with the 5.9-liter Cummins engine dowel pins in the '89-'93 and '98.5-'02 Dodge Turbo Diesel trucks. They are typically used to help locate and line up a housing-to-housing assembly. Such is the case with the Cummins 12-valve engines (and some early model 24-valve engines) where the gear case/timing cover assembles to the engine block.

The dowel pin used in the Cummins engine can back out of its bore. When it does, it can fall into the camshaft gear and cause all types of expensive engine damage.

The folks at TST Products have developed a kit to cover the dowel pin and prevent its movement. These year engines have a step, or shelf, between the tab retaining bolt, and the dowel pin. These kits come with a bent tab to accommodate the step.

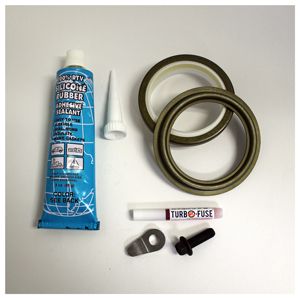

The kit is inexpensive protection and includes:

• Killer Dowel Pin cover tab
• Timing cover seals
• RTV sealant for timing cover

Unfortunately the labor involved to access the KDP and cover it with the cover tab is time consuming. However, clear instructions make it a job that the DIYer can handle. Read about dowel pin containment from TDR Issue 57. Click to open PDF (3 meg).

**This kit does NOT include a new cover gasket, rather a tube of RTV sealant like Cummins used on later B engines in place of a gasket. If you want to use a gasket on your '98.5-'02 truck, order Cummins part number 3918673.
